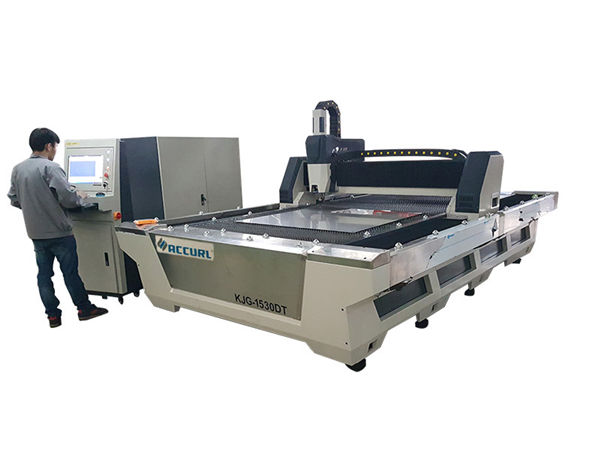

full enclosed cnc fiber laser cutting machine 1000w 1080nm laser

Maklumat produk

Persijilan: ISO9001: 2008

Terma Pembayaran & Penghantaran:

Kuantiti Pesanan Minima: 1

Harga: rundingan

Butir-butir pembungkusan: Kes kayu

Masa penghantaran: 7-15 hari

Keupayaan bekalan: 1 unit / bulan

Penerangan Produk Terperinci

Nama Produk:	Full Enclosed Laser Cutting Machine , 1000W Metal Cutting Machine	Laser Power:	1000w 1500w 2000W
Panjang gelombang Laser:	1080nm	Kawasan kerja:	3000 * 1500mm
Pemotongan Ketebalan:	0-16MM (bergantung kepada kuasa laser)	Bekalan Kuasa:	380v
Waranti:	1 tahun

Desciption Produk

Integrated machine design:left and right collecting drawer on the left and right side of the machine,highly saving space

Fiber laser has high and stable function and lifespan which is over 100000 hours

Higher cutting quality and efficiency with cutting speed being up to 25m/min with perfect cutting edge

High performance reducer, gear and rack; Japanese guide and ball screw

Ciri-ciri utama

1. The middle part of the two platforms are not in the same level, which can Save time for feeding and unloading material in short time.
2. Fully enclosed design can greatly reduce damage to the health from the laser, especially for those countries who strictly required to the environmental protection.
3. The exchange platform with heavy capacity can be placed 8-10 mm carbon steel plate. The table has universal balls. There is a sheet metal clamping device beside the table, which can firmly fix the materials on the table to avoide workpiece movement.
4. If it was powered off or the chain was pulled off , the platform can be pushed in by hand. At the same time it has anti-collision protection device on the left side of the machine to protect of the machine from damaging.
5. The overall steel beam is very steel, the machine beam used a 17 mm thickness plate, and beam base’s thickness is about 30 mm.
6. Using the well-known brand of Taiwan helical rack, Taiwan's silver (HIWIN) 30 rail, good quality electronic devices, and Franch drive motor to ensure the accuracy of the machine work.
7. Faster Acceleration , repeated positioning accuracy is about 0.03mm,and its cutting accuracy can reach 7-8 silk.
8. Dust cover is made of the fire-retardant materials.There will not be break and pull off with a long time use, at the same time it can prevent the spark burning.

Spesifikasi teknikal

^{Panjang gelombang Laser}	^1080nm
^{Ketebalan memotong}	^0.2-16mm
^{Kuasa output laser}	^1000W
^{Julat pemprosesan maksimum}	^{3000 * 1500mm}
^{Mod pemacu mesin}	^{gear rak yang diimport dan memandu pinon}
^{Y X. ketepatan kedudukan paksi}	^{± 0.01mm}
^{Ketepatan kedudukan kedudukan paksi XY}	^{± 0.01mm}
^{Mod bekalan kuasa}	^{380V / 50Hz}
^{Kelajuan pemotongan maksimum}	^{45m / min}
^{Lebar garis memotong minimum}	^0.02mm
^{Mod penyejukan}	^{3P penyejukan air}

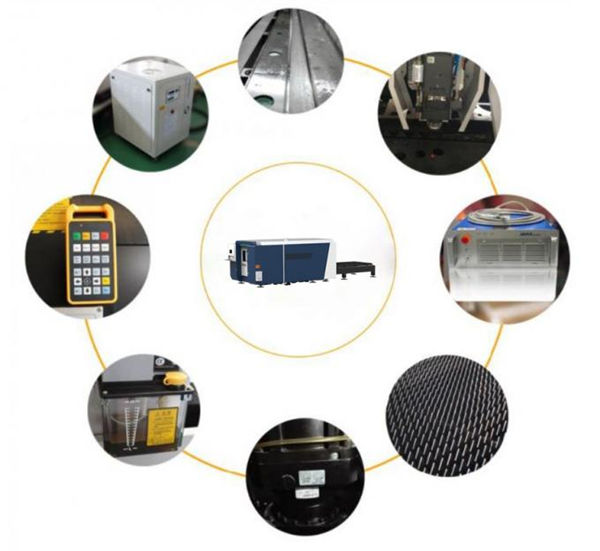

Butiran Mesin Pemotongan Laser

Bahan terpakai

Terutamanya digunakan untuk memotong keluli karbon, keluli silikon, keluli tahan karat, aloi aluminium, aloi titanium, lembaran keluli tergalvani, papan pengambilan, plat zink aluminium, tembaga dan pelbagai jenis bahan logam memotong dan sebagainya.

Applied Industrie

Digunakan dalam pemprosesan logam lembaran, penerbangan, spaceflight, elektronik, peralatan elektrik, bahagian kereta bawah tanah, kereta, jentera, komponen ketepatan, kapal, peralatan metalurgi, lif, peralatan rumah tangga, hadiah dan kraf, pemprosesan alat, perhiasan, industri pemprosesan pembuatan.
