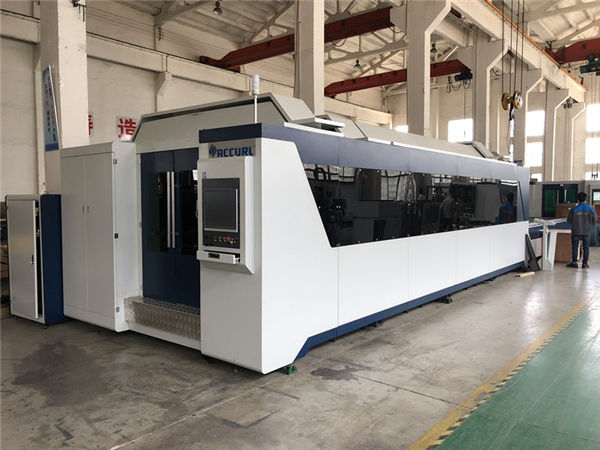

professional cnc fiber laser cutting machine 1000w 1500w with exchange table

Maklumat produk

Persijilan: ISO9001: 2008

Terma Pembayaran & Penghantaran:

Kuantiti Pesanan Minima: 1

Harga boleh dirunding

Butiran Pembungkusan: pakej kayu

Masa penghantaran: 15 hari bekerja

Terma pembayaran: T / T

Keupayaan Membekalkan: 1000 Unit per Bulan

Penerangan Produk Terperinci

Nama Produk:	CNC Fiber Laser Cutting Machine	Jenis Laser:	Serat Laser
Laser Power:	1000w 1500W	Saiz Kerja:	3000 * 1500mm
Waranti:	12 bulan	Perkhidmatan selepas jualan:	Perkhidmatan Jurutera Luar Negara
Berat:	3000 Kgs	Pakej:	Kes kayu

Production Description

1. High quality laser beam: smaller focal spot, refined cutting kerfs, higher working efficiency, better processing quality.
2. Rapid cutting speed: the cutting speed is twice as fast as CO2 laser (cutting with equal laser power)
3. Stable performance: laser device lifetime long;
4. High photoelectric conversion ratio: its efficiency is 3 times higher than common CO2 laser, and it is energy-saving and environmentally friendly;
5. Low running costs: gross power is just 20-30% of CO2 laser.
6. Low maintenance costs: no working gas for laser device; optical fiber transmission doesn’t need reflecting mirrors, which save lots of maintenance costs.
7. Easy operation and maintenance: optical fiber transmission and no need to adjust the optical path;
8. Flexible optical effects: compact volume and structure, easy to meet the requirement of flexible manufacturing.

Main Features of CNC Fiber Laser Cutting Machine

1. Adopt the international famous brand laser cutting head to ensure good cutting results.
2. The bilateral mechanical structure of the rack drives the speed of the equipment greatly, and it can reach the idle distance above 120m/min.
3. Selecting the most advanced German IPG fiber lasers today, with high photoelectric conversion efficiency, stable performance, and service life of key components of up to 100,000 hours.
4, laser transmission by the optical fiber, without the need for reflective lenses, can save a lot of maintenance costs.
5, compared with other media laser equipment, fiber optic focus spot is smaller, the work efficiency is higher, the processing quality is better.
6, advanced technology can improve your company's new product development speed, the fastest for you to recover equipment investment costs

^{Kuasa Laser}	^{500w 750w 1000w 1500w 3000w fiber optional}
^{Kawasan pemotongan}	^{1500mm * 3000mm}
^{Saiz mesin keseluruhan}	^{1360 * 780 * 1100mm}
^{Kelajuan ukiran}	^{0 - 60,000mm / min}
^{Menetapkan semula ketepatan kedudukan}	^{± 0.05mm}
^{Voltan yang bekerja}	^{AC 110 - 220V ± 10%, 50 - 60Hz}
^{Kuasa kasar}	^<1,000W
^{Suhu Operasi}	^{0 - 45 ° C}
^{Kelembapan operasi}	^{5- 95%}
^{Watak membentuk minimum}	^{Bahasa Inggeris 1 x 1mm}
^{Format grafik disokong}	^{BMP, PLT, DST, DXF, dan AI}
^{Sistem memandu}	^{500w 800w 1000w 1500w 3000w fiber optional}
^{Mod penyejukan}	^{sistem penyejukan dan perlindungan air}
^{Peralatan tambahan}	^{Kipas ekzos, paip ekzos udara}
^{Mengawal perisian}	^{Sistem kawalan Cypcut}
^{Perisian yang serasi}	^{CorelDraw AutoCAD Photoshop}
^{Berat bersih}	^{3000kg (bergantung kepada model)}

_{1.Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.
2.Maxphotonics fiber laser generator, 500W, 800W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional
3.Japan Yaskawa servo motor system.
4.Taiwan HIWIN linear guide rail.
5.Cypcut controlling system.
6.BEST Germany Atlanta double driver rack gear.
7.Germany Neugart reducer. menggunakan di bawah:
3. China Top manufactuers, Jinan G.Weike, harga dan kualiti terbaik, dengan sijil CE & FDA & ISO
4. Ketebalan Keratan Cutting 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, sehingga 20mm
5. RL3015 tiub paip serat laser mesin pemotong, 1500 * 3000mm
6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine.}

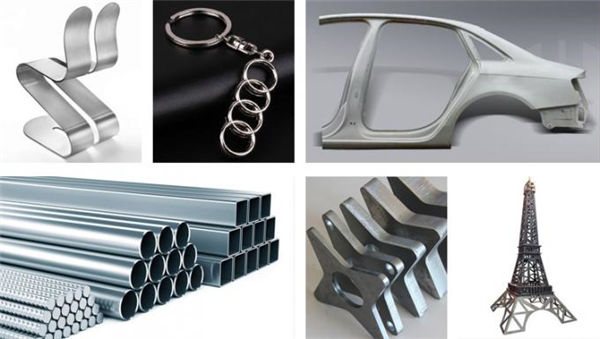

Industri Aplikasi

Digunakan dalam pemprosesan logam lembaran, penerbangan, spaceflight, elektronik, peralatan elektrik, bahagian kereta bawah tanah, kereta, jentera, komponen ketepatan, kapal, peralatan metalurgi, lif, peralatan rumah tangga, hadiah dan kraf, pemprosesan alat, perhiasan, industri pemprosesan pembuatan.
