Maklumat produk
Penerangan Produk Terperinci
Kawasan Pemotongan: | 1500 * 3000mm | Mod Penyejukan: | Penyejuk Air |
---|---|---|---|
Laser Power: | 1000W | Beban Max Kerja: | 1000kgs |
Ketepatan kedudukan: | ± 0.05 Mm | Pakej Pengangkutan: | Seaworthy Plywood Case |
Technical Class: | Laser Gelombang Berterusan | Permohonan: | Agriculture Machinery, Automotive Industry, Advertising Industry, Metal Processing |

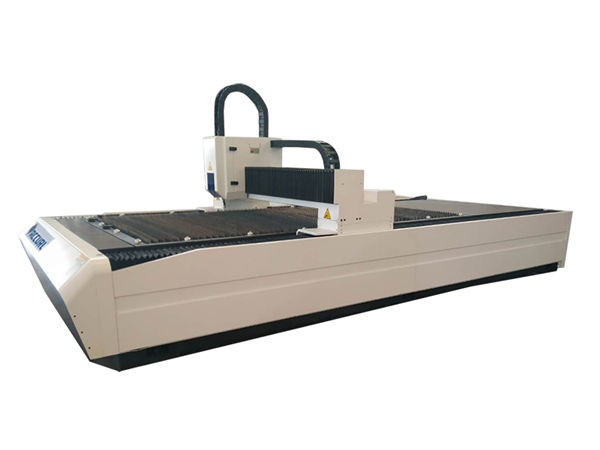

Penerangan Produk
1.The strong frame is completely welded, high temperature annealing and stress relief treatment to ensure no deforming.
2. Imported high precision ball screw transmission / rack & pinion, high precision linear guide rail.
3. Imported servo motor and drive, imported high-rigidity precision gearbox.
Equipped with auto-lubrication device, with dust removal and smoke extract system in cutting area.
4.Modular structure of laser generator, high performance and free from maintenance
Professional laser cutting software, easy, convenient and smart to operate, easily design all kinds of graphics and texts for cutting.
Advantages over Other Cutting Machines
1. The super high photo-electric conversion efficiency can be up to about 30%. So the machine runs with the lowest power consumption compared to other laser cutting machines under the same output power. So the cutting cost is the lowest.
2. With laser beam of good quality from double-clad fiber(DCF), the focus spot is superfine, and the cutting seam is very even and fine. Then the efficiency can be higher, and the quality is better.
3. The surface-area-to-volume ratio (SVR) of the gain medium is big.
4. The light path is totally composed of fiber laser and fiber laser units, which are combined together based on cable splicing technology. And the whole light path is enclosed in fiber laser waveguide.
5. No laser working gas and can start cutting just by blowing air. And fiber optic transmission requires no need of reflector mirrors. In a word, the machine saves maintenance costs greatly.
6. The efficiency is very stable and reliable by adopting the diode pump laser module. No need to adjust the light path. So it’s easy to operate and maintain the machine.
7. Key units have the working life of 100 thousand hours.
8. High output power from 200 to 4000w can be customized.
9. The machine costs little water and energy. And the machine requires no gas. So the running cost is lower.
What Materials Can our Machine Cut ?
Bahan | Ketebalan memotong (mm) | Cutting speed (m/min) | Cutting gas | Cutting pressure | Nozzle | Collimator / Focus |
Keluli karbon | 0.5 | 30-40 | Air | 6 | 1.5 single layer | 75/125 |
0.8 | 20-25 | Air | 8 | 1.5 single layer | 75/125 | |
1 | 18-22 | Air | 10 | 2.0 single layer | 75/125 | |
2 | 5-6.5 | Oxygen | 3.5 | 1.2 double layer | 75/125 | |
3 | 3-3.5 | Oxygen | 0.5-1 | 1.2 double layer | 75/125 | |
4 | 2-2.3 | Oxygen | 0.5 | 1.2 double layer | 75/125 | |
5 | 1.5-1.8 | Oxygen | 0.5 | 1.2 double layer | 75/125 | |
6 | 1.2-1.4 | Oxygen | 0.5 | 1.5 double layer | 75/125 | |
8 | 0.9-1.2 | Oxygen | 0.5 | 2.0 double layer | 75/125 | |
10 | 0.7-0.8 | Oxygen | 0.5 | 2.5 double layer | 75/125 | |
12 | 0.5-0.65 | Oxygen | 0.5 | 2.5 double layer | 75/125 | |
Keluli tahan karat | 0.5 | 30-40 | Nitrogen | 7 | 1.5 single layer | 75/125 |
0.8 | 22-25 | Nitrogen | 10 | 1.5 single layer | 75/125 | |
1 | 20-23 | Nitrogen | 12 | 1.5 single layer | 75/125 | |
2 | 6-7 | Nitrogen | 15 | 2.0 single layer | 75/125 | |
3 | 2.5-2.8 | Nitrogen | 18 | 2.0 single layer | 75/125 | |
4 | 0.8-1.2 | Nitrogen | 18 | 2.0 single layer | 75/125 | |
5 | 0.6-0.8 | Nitrogen | 18 | 2.0 single layer | 75/125 | |
Aluminum | 0.5 | 20-25 | Air / Nitrogen | 8 | 1.5 single layer | 75/125 |
0.8 | 15-18 | Air / Nitrogen | 9 | 1.5 single layer | 75/125 | |
1 | 10-12 | Air / Nitrogen | 12 | 1.5 single layer | 75/125 | |
2 | 3-3.5 | Air / Nitrogen | 18 | 2.0 single layer | 75/125 | |
3 | 1-1.5 | Air / Nitrogen | 18 | 2.0 single layer | 75/125 | |
Tembaga | 0.5 | 22-30 | Nitrogen | 12 | 1.5 single layer | 75/125 |
0.8 | 13-17 | Nitrogen | 12 | 1.5 single layer | 75/125 | |
1 | 10-12 | Nitrogen | 15 | 1.5 single layer | 75/125 | |
2 | 2-3 | Nitrogen | 18 | 2.0 single layer | 75/125 | |
3 | 1-1.3 | Nitrogen | 18 | 2.0 single layer | 75/125 | |
Copper | 0.5 | 15-18 | Oxygen | 12 | 1.5 single layer | 75/125 |
0.8 | 8-12 | Oxygen | 12 | 1.5 single layer | 75/125 | |
1 | 5-7 | Oxygen | 12 | 1.5 single layer | 75/125 | |
2 | 0.8-1.2 | Oxygen | 15 | 2.0 single layer | 75/125 |
Applied materials of 1000W Fiber Laser Cutting Machine
Pemotong gentian terutamanya digunakan untuk memotong keluli karbon, keluli ringan, keluli tahan karat, keluli silikon, aloi aluminium, aloi titanium, lembaran keluli tergalvani, papan pengambilan, plat zink aluminium, tembaga dan pelbagai jenis bahan logam. Ia adalah pemotong laser cnc yang boleh digunakan untuk melakukan pemotongan ketepatan yang tinggi. Ia juga boleh dipanggil mesin pemotong serat, pemotong laser gentian optik, pemotong laser untuk logam, pemotong serat, pemotongan keluli karbon, pemotong laser cnc.
Parameter Teknikal
Kawasan kerja | 3000 * 1500mm |
Controller + Heigh follower | Cypcut |
Sumber Laser | Fiber Laser Source 1000W |
Panjang Gelombang | 1070nm ± 10nm |
Ketua Laser | Pilihan |
Gear and Rack | Jerman |
Rail Panduan | Taiwan HIWIN |
Kedudukan Precision | ≤ ± 0.04mm |
Pemotongan Tebal | 1-12mm |
Kelajuan pemotongan maksimum | 40000mm / min (mengikut bahan) |
Voltan yang bekerja | AC220V / 110V ± 10% 50HZ / 60HZ |
Lebar garis min | ≤0.12mm |
Penghantaran | Yaskawa servo 850W + pengurangan FASTON |
Paksi Z | Yaskawa 400W + brek |
Penyejukan | Penyejuk Air |
Struktur | 10mm Tebal Tiub keluli dikimpal, Gantry Aluminium Alloy |
Penggunaan kuasa | ≤7.5KW |
Applied Industry of 1000W Mesin Pemotongan Serat Laser
Pemotong laser untuk logam ini digunakan dalam pemprosesan logam lembaran, penerbangan, spaceflight, elektronik, peralatan elektrik, bahagian kereta bawah tanah, kereta, jentera, komponen ketepatan, kapal, peralatan metalurgi, lif, perkakas rumah, hadiah dan kraf, pemprosesan alat, pengiklanan, pemprosesan logam asing pelbagai industri pemprosesan pembuatan.
