high speed sheet metal cnc cutting machine stable z axis automatic tracking

kelajuan tinggi lembaran logam cnc memotong mesin stabil z paksi pelacakan automatik

Maklumat produk

Terma Pembayaran & Penghantaran:

Kuantiti Pesanan Minima: 1

Harga boleh dirunding

Butiran Pembungkusan: pakej kayu

Masa penghantaran: 15 hari bekerja

Terma pembayaran: T / T

Keupayaan Membekalkan: 1000 Unit per Bulan

Penerangan Produk Terperinci

Nama Produk:	Plate And Tubes Laser Cutting Machine	Jenis Laser:	Serat Laser
Laser Power:	500w / 800w / 1000w	Saiz Kerja:	3000 * 1500mm
Waranti:	12 bulan	Perkhidmatan selepas jualan:	Perkhidmatan Jurutera Luar Negara
Berat:	3000 Kgs	Pakej:	Kes kayu

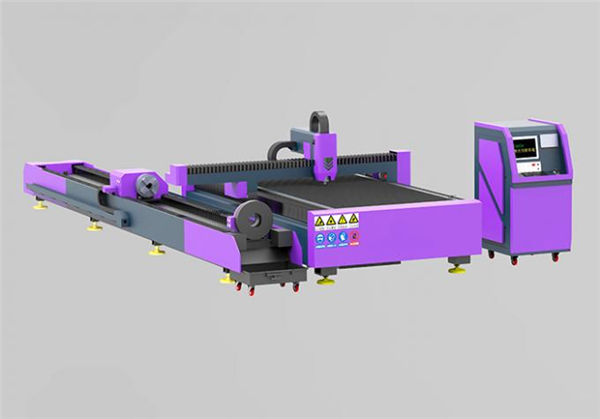

Satu Mesin, Penggunaan Dual, boleh memotong tiub logam dan plat logam pada satu masa
In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

Production Description

. 300w, 500w, 800w, 1000w, 1500w 3000w Maxphotonics fiber optic laser optional.
. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials ,etc..
. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates.
. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm.
. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm.
. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine.

Stable Z axis automatic tracking function

The most advanced capacitor non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board to avoid the material is not smooth, the focal length of the material caused by the problem of scrapped.
Because the cutting head is equipped with non-contact sensing device, under the control of the system, can achieve a stable Z-axis floating function, directly eliminate the uneven sheet on the cutting quality, CNC laser cutting machine has a high cutting yield.

Badan mesin

Using gantry type mechanic structure , high precision ,good quality, stable performance.
Machine bed:The use of high-quality steel and pipe welded from the frame structure, the machine is annealed, the second aging treatment, large-scale milling machine precision processing, these design and processing means to ensure that the machine has excellent shock resistance, high rigidity and stability.
Waste recycling equipment:Equipped with trolley, clean up the blanking without lifting the table.

Transmission system

The use of bilateral rack gear transmission and imported linear guide, and the use of dual-drive servo motor drive system, effectively ensuring the laser cutting speed and accuracy.

Sistem kawalan

Penggunaan operasi komputer perindustrian PC profesional, antara muka grafik, mudah dikendalikan, perisian pemotongan profesional bebas boleh merancang pelbagai grafik dan teks, pemprosesan masa nyata, sokongan CAD, CorelDraw dan perisian pemetaan profesional yang lain.
High-quality industrial computer control operation
High efficient, easy to operate CNC cutting system
Z axis automatic tracking function
Sistem kawalan pemotongan CNC
Sistem kawalan pemotongan CNC adalah penggunaan kad kawalan berprestasi tinggi, berdasarkan pembangunan Windows XP Professional, sepenuhnya mengawal sistem kawalan CNC, oleh itu, kawalan masa nyata dan peningkatan perisian antara mesin dan sumber laser lebih mudah dan cepat.

Parameter teknikal

Sumber laser: sumber laser serat Maxphotonics
Serat laser kuasa: 500W, 800W, 1000W, 1500W, 2000W, 3000W (Pilihan)
Saiz binaan: 3000 * 1500mm
Ketepatan kedudukan X dan Y: + -0.05mm
Mod penghantaran: import Jerman Atlanta gear berketepatan tinggi dan rak dengan double cutting rack fiber laser cutting machine

^{Kuasa Laser}	^{500w 750w 1000w 1500w 3000w fiber optional}
^{Kawasan pemotongan}	^{1500mm * 3000mm}
^{Saiz mesin keseluruhan}	^{1360 * 780 * 1100mm}
^{Kelajuan ukiran}	^{0 - 60,000mm / min}
^{Menetapkan semula ketepatan kedudukan}	^{± 0.05mm}
^{Voltan yang bekerja}	^{AC 110 - 220V ± 10%, 50 - 60Hz}
^{Kuasa kasar}	^<1,000W
^{Suhu Operasi}	^{0 - 45 ° C}
^{Kelembapan operasi}	^{5- 95%}
^{Watak membentuk minimum}	^{Bahasa Inggeris 1 x 1mm}
^{Format grafik disokong}	^{BMP, PLT, DST, DXF, dan AI}
^{Sistem memandu}	^{500w 800w 1000w 1500w 3000w fiber optional}
^{Mod penyejukan}	^{sistem penyejukan dan perlindungan air}
^{Peralatan tambahan}	^{Kipas ekzos, paip ekzos udara}
^{Mengawal perisian}	^{Sistem kawalan Cypcut}
^{Perisian yang serasi}	^{CorelDraw AutoCAD Photoshop}
^{Berat bersih}	^{3000kg (bergantung kepada model)}

1.Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.
2.Maxphotonics fiber laser generator, 500W, 800W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional
3.Japan Yaskawa servo motor system.
4.Taiwan HIWIN linear guide rail.
5.Cypcut controlling system.
6.BEST Germany Atlanta double driver rack gear.
7.Germany Neugart reducer. menggunakan di bawah:
3. China Top manufactuers, Jinan G.Weike, harga dan kualiti terbaik, dengan sijil CE & FDA & ISO
4. Ketebalan Keratan Cutting 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, sehingga 20mm
5. RL3015 tiub paip serat laser mesin pemotong, 1500 * 3000mm
6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine.

Permohonan

1. Clean cut edges without burr for more efficient material utilization and reduced secondary operations.
2. Memotong pelbagai ketebalan dan kombinasi bahan dalam satu operasi
3. No material deformation due to contactless material processing.
4. Sangat pemprosesan, berulang dan tepat pemprosesan.Etc.
Sejak reka bentuk lembaran dan paip yang bersepadu, industri penyesuaian RL3015 telah sangat dipertingkatkan, termasuk bahan petroleum dan paip, peralatan kecergasan dan bahan paip lain terutamanya pemprosesan mekanikal, Pembuatan automotif, Kabinet mesin dan lain-lain bahan papan terutamanya pemprosesan mekanik dan sebagainya.
